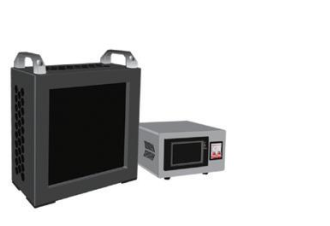

D-MEI DY-HT-MF Blackbody Radiation Source (50℃～ 300℃ /50℃～ 500℃)

Working Temperature: 50℃～ 300℃ /50℃～ 500℃

Operation Mode: touch screen operation

Temperature Resolution: 0.1℃

Temperature Control: PID automatic control

Radiation Surface: 100mm*100mm/150mm*150mm/200mm*200mm/300mm*300mm (can be customized)

Emissivity: ≥ 0.95

Temperature Stability: no greater than 0.15℃ or 0.15%t, whichever is greater, t is the radiation source temperature (within 10 minutes)

Temperature Uniformity: ±(0.2~1.0)℃ (@ room temperature +5℃ ,2/3 center area)

Power supply: 220V AC 50HZ

Power: 800W

Volume (length×width×height): Black body host 260mm ×260mm×200mm

Weight: 8Kg

Environment: 22±3℃ 15%RH ～ 65%RH; up to 2000 meters
