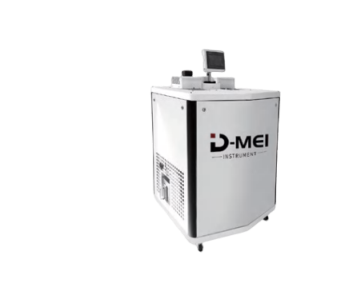

D-MEI DY-GDL40 High and Low Temperature Integrated Thermostatic Bath (-40℃ ~300℃)

Resolution (℃ ): 0.001

Working Temperature Range (℃ ): -40~300 (Cavity A: -40℃ C~95℃ , Cavity B: 90℃ ~300℃ )

Temperature Fluctuation (℃ /10min): 0.01

Temperature Uniformity (℃ ): horizontal temperature field ≤ 0.01; vertical temperature field ≤ 0.02

Working Area Size (mm): Ф130×480

Tank Volume (L): 18L+18L

Working Medium: Low temperature chamber: refrigerant liquid; High temperature chamber: methyl silicone oil

Operating Ambient Temperature (℃ ): below 30

Total Power (kw): 4

Power Supply (v/50hz): 220

Overall Dimensions (mm): LxWxH=1000mmx890mmx1240mm

Inner Shell Material: stainless steel hairline board

Implementation Standards

JJF1030-2010 Constant Temperature Bath Technical Performance Test Specifications

JJG229-2010 Calibration Regulations for Industrial Platinum and Copper Thermal Resistors

JJG130-2011 Calibration Regulations for Liquid-in-glass Thermometers for Working Use
