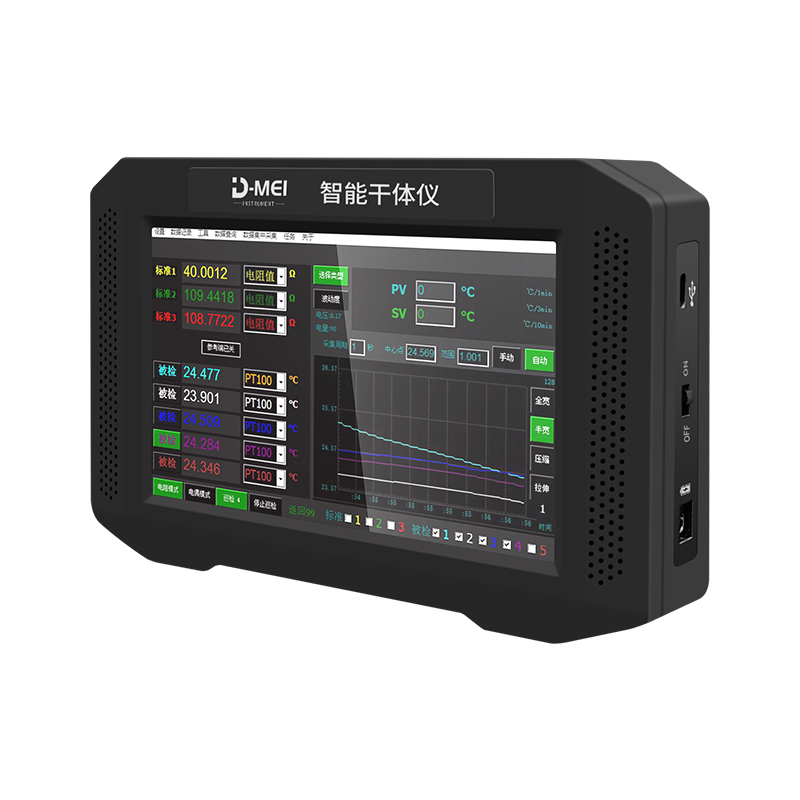

D-MEI DY-CTRE200 Multi-functional Intelligent Thermometer/Acquisition Instrument

Display: 7-inch color touch screen

Resolution: 0.001

Display: ℃/mV/Ω

Collection Accuracy: 0.02%

Input Channel: 8 channels (including independent standard channels: 3, inspection channels: 5)

Adapt Sensor Type:

Industrial four-wire Pt100 thermal resistance sensor

Industrial thermocouple sensors, K, E, J, T, B, N, R, S

Standard platinum resistance thermometer(Pt25)

Standard thermocouple thermometer

Measuring Range

Thermal resistance: -100℃-500℃

Thermocouple:0℃-1600℃

Mode Switchable:

Thermal resistance mode: 3 standard platinum resistors (Pt25) + 5 PT100

Thermocouple mode: 1 standard thermocouple + 5 thermocouples (gradient numbers can be different)

Inspection Inspection Time: 1 second/channel

Function

Data recording and query functions, the recording time interval can be set

The channel has temperature display, resistance display, 3-minute and 10-minute fluctuation display

Each channel has a deviation correction function to facilitate internal deviation correction

3 standard channels, 1-3 can measure standard platinum resistance thermometers, and channel 3 can also measure standard thermocouples.

Curve display, can display the temperature range automatically or manually.

5 inspection channels, which can simultaneously detect Pt100 thermal resistance sensors or industrial thermocouple sensors, K, E, J, T, B, N, R, S (thermocouples can be mixed)

Upgrade Function: Matching Dry Body Furnace

This equipment is equipped with an intelligent dry-body furnace, which can realize wireless control, set the temperature in real time, and display the current temperature and temperature fluctuation of the dry-body furnace.

Interfaces and Protocols

Standard Configuration: USB type-C interface Optional: RS-485

Standard: modbus-RTU communication protocol

Dimensions(length × width × height): 220mm×45mm×145mm

Weight: ≤2kg

Power Supply: 10000mAH lithium battery, charging mode

Operating Temperature: 15℃-25℃，10%RH-95%RH

Cold Junction Compensation: External or channel compensation, the external PT100 reference terminal is used for thermocouple acquisition, and the reference terminal can be turned on or off

Standard Accessories: Host, USB expansion port, wireless mouse, charger, 8 signal adapter cables, instrument carrying case
