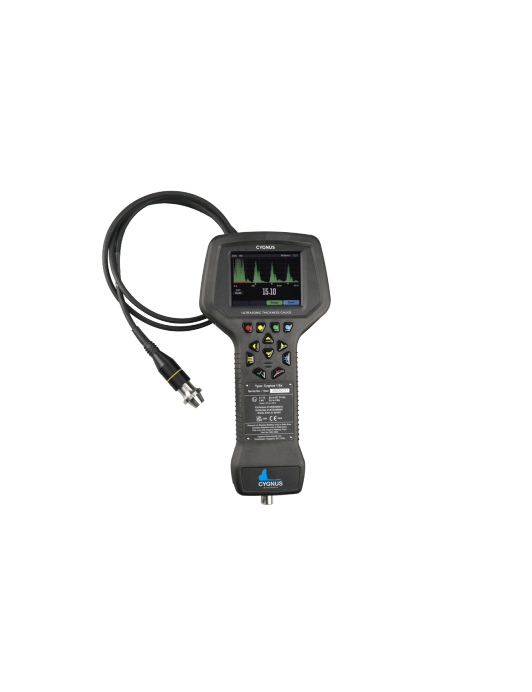

Cygnus Instruments CYGNUS 1 Ex Ultrasonic Thickness Gauge

Measuring Mode:

Single Echo with Twin Crystal Probes

Echo-Echo with Twin Crystal Probes

Multiple Echo with Singly Crystal Probes

Materials: Sound velocity from 1000 m/s to 9000 m/s [0.0390 in/us to 0.3543 in/us]

Accuracy: ±0.1 mm (±0.004”) or 0.1% of thickness measurement whichever is the greatest

Resolution: 0.1mm, 0.05mm or 0.01mm depending on probe type

Probe Options: Single crystal and twin crystal probes

Measurement Range in Steel: 0.8mm to 250mm (0.031 in. – 10 in.) depending on selected probe and configuration, material and temperature

Connector: Single Dual Coaxial Connector

Power Supply: Rechargeable, removable Lithium-Ion battery pack

Power Rating: 2W

Probe Sockets: Single Dual Coaxial Connector

Battery Life: 6-8 hours continuous measurement

Display: 3.5” VGA, sunlight readable colour display

Size: 270mm tall, 135mm wide, 80mm deep

Weight: 1 kg with battery

Operating Temp:  -0°C to +50°C (32°F to 122°F)

Storage Temp: -10°C to +65°C (50°F to 149°F)

Data Logging: 10,000 measurements and A-scans per record

Computer Software: CygLink allows remote logging and viewing of A-scan graphs. Survey and report generation to PDF file. Graphic analysis of data and statistical calculations. Bluetooth connection to transfer data to a Windows® computer with CygLink

Datasheet
