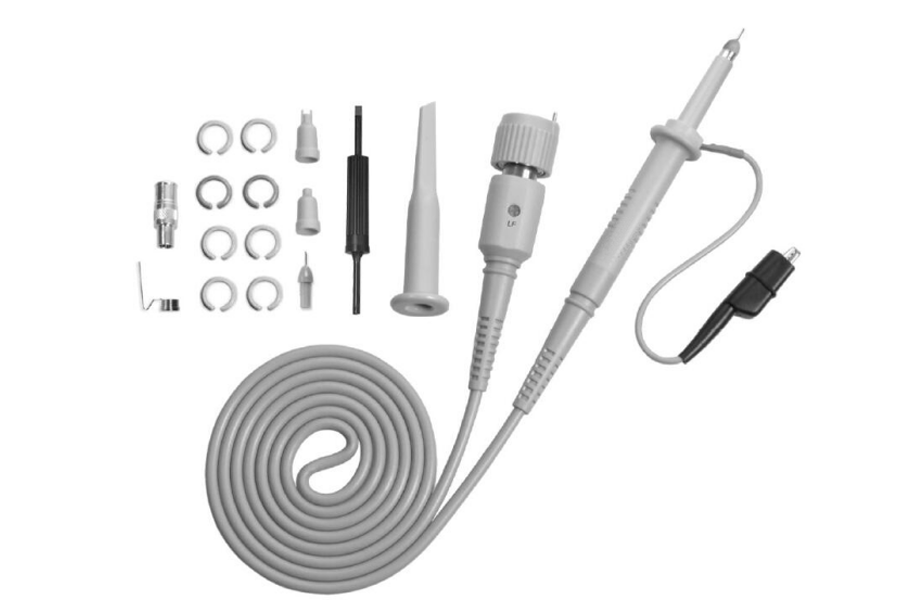

Cybertek P6501 Passive Oscilloscope Probe (DC-500MHz/ 0.7ns)

Attenuation ratio: 10:1

Bandwidth: DC to 500MHz

Rise time: 0.7ns

Input resistance: 10MΩ when used with oscilloscopes which have 1MΩ input

Input capacitance: approx.11pF

Compensation range: 8-20pF

Max.Input voltage: measurement category I: 500Vrms; Measurement Category II: 400Vrms

Pollution degree: Pollution degree 2

Operating altitude: up to 3000 meters

Max.Operating Temp: 0°C - 50°C

Humidity:

5% to 95% RH (10°C-30°C)

5% to 75% RH (30°C-40°C)

5% to 50% RH (above 40°C)

RH not controlled below 10°C

Cable length: 1.2 meter

Manual
