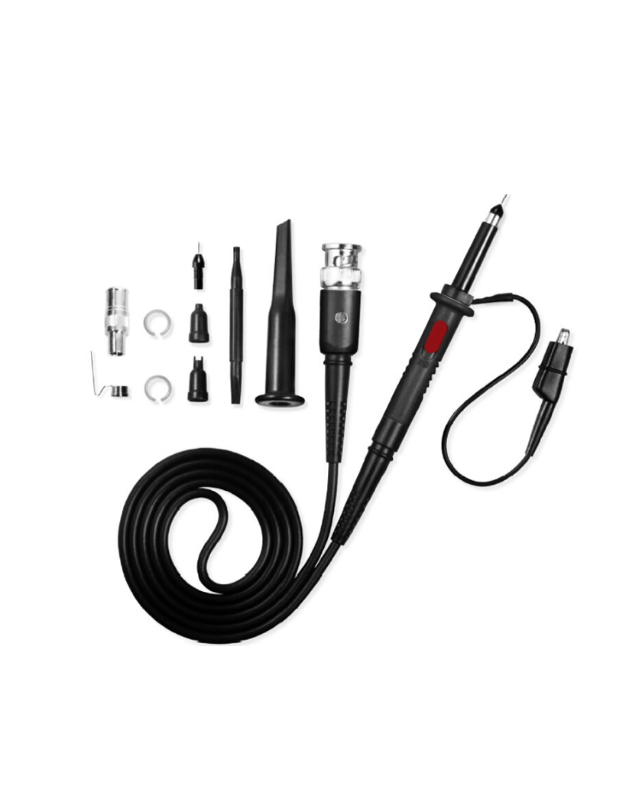

Cybertek P6251 Passive Oscilloscope Probe (DC-250MHz/1.4ns)

Position X10

Attenuation Ratio: 10:1

Bandwidth: DC to 250MHz

Rise Time: 1.4ns

Input Resistance: 1MΩ when used with oscilloscopes which have 1MΩ input

Input Capacitance: Approx . 13pF

Compensation Range: 10 to 30pF

Max. Input Voltage: Measurement Category 1: 500 Vrms; Measurement Category II :400 Vrms

Position X1

Attenuation Ratio: 1:1

Bandwidth: DC to 6MHz

Rise Time: 58ns

Input Resistance: 1MΩ (oscilloscope input resistance)

Input Capacitance: 65pF plus oscilloscope capacitance.

Max. Input voltage: Measurement Category 1: 150 Vrms; Measurement Category II: 150 Vrms

Operating Temperature: 0℃ to 50 ℃

Humidity: 85% RH or less (at 35℃)

Safety Meets: EN61010-031 CAT II

Cable Length: 1.2 Meter
