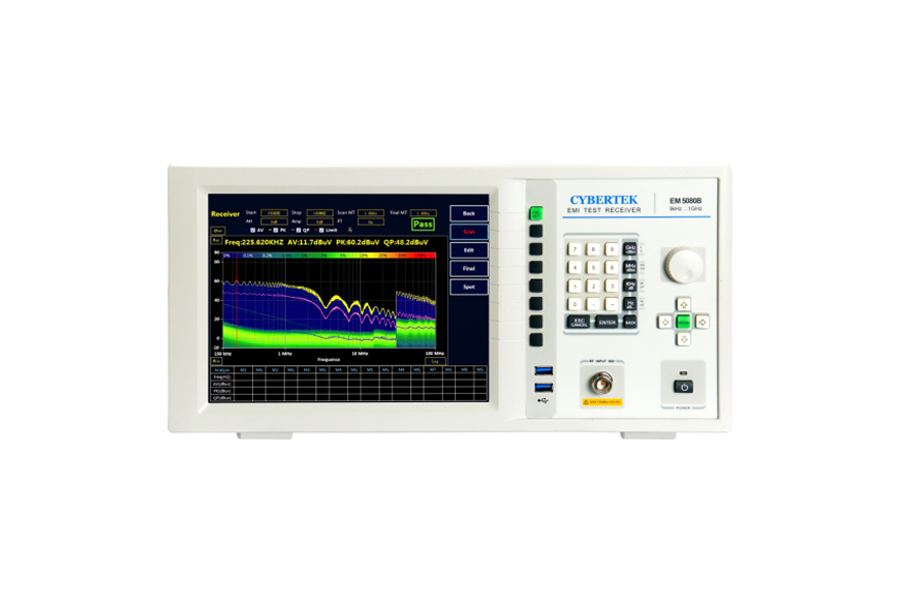

Cybertek EM5080M EMI Testing Receiver (9kHz~500MHz)

Frequency range: 9kHz to 500MHz

Level

Maximum RF level (CW)

RF attenuation≥20dB: 30dBm(=1W)

RF pre-Amplifier off: 30dBm(=1W)

Maximum pulse voltage: RF attenuation≥20dB: 150V

Resolution ratio bandwidth

Analyzer mode: 1 /2 / 3 / 5 / 10 step from 10Hz to 1MHz (- 3dB)

Receiver mode: Standard: 200Hz, 9kHz, 120kHz（–6dB); Newly added 10kHz and 100kHz (-6dB) extra optional

Preselector: Could be turned off in analyzer mode: 15 tunnel fixed filter

Preset amplifier: Can be turn on/off; 9kHz to 1GHz, 20dB gain, uniformed

Test time: Receiver mode; 1ms to 1.5s

Detector: Receiver mode; Peak, quasi-peak, average value

Displayed average noise level:

Receiver mode, uniformed, Average detector, RF attenuation 0dB

Preset Amplifier off.

9kHz<f<150kHz, bandwidth 200Hz: < 0dBμV

150kHz<f<30MHz, bandwidth 9kHz: < 10dBμV

30MHz<f<1GHz, bandwidth 120kHz: < 20dBμV

Preset Amplifier on

9kHz<f<150kHz, bandwidth 200Hz: < -5dBμV

150kHz<f<30MHz, bandwidth 9kHz: < 0dBμV

30MHz<f<1GHz, bandwidth 120kHz: < 5dBμV

All uncertainty: 9kHz≤f<1GHz; 1.5dB

Power consumption: <100W
