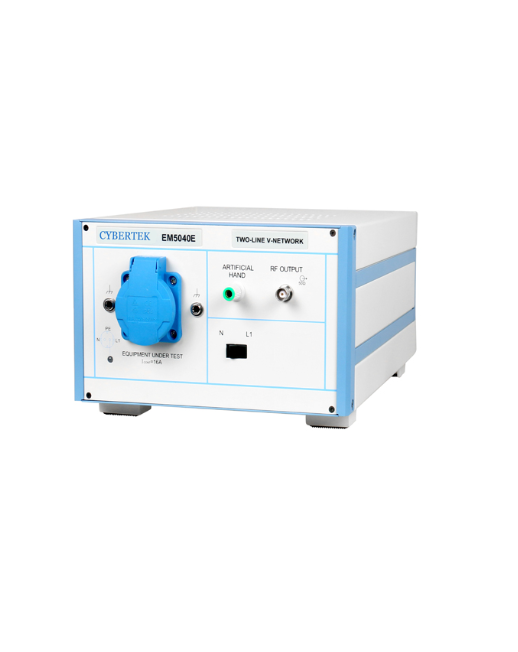

Cybertek EM5040E Line Impedance Stabilization Network (9kHz-30MHz/16A)

Frequency range: 9kHz—30MHz

Circuit type: (50uH+5Ω）|| 50Ω Type V

Measurement circuit phase number: Single phase two wire L/N1

AC voltage/frequency range: 0～264VAC/ 50～60Hz ±5%

DC voltage range: 0～375V DC

Power supply output connector: German standard power supply socket

Output current: Rating 16A

Ground protection: Side metal panel grounding; Rear panel 4mm butterfly bolt grounding

Output connector: Standard 50Ω BNC female

Artificial hand: Yes

Output signal filter: no

Output signal limiter: no

Output signal common mode and differential mode separator: No

Operating temperature range: 0℃～45℃

Storing temperature: -20℃～70℃

Safety standard: EN61010-1

Size: 338mm（Length) × 237mm (Width) × 133mm (Height）

Weight: 5kg
