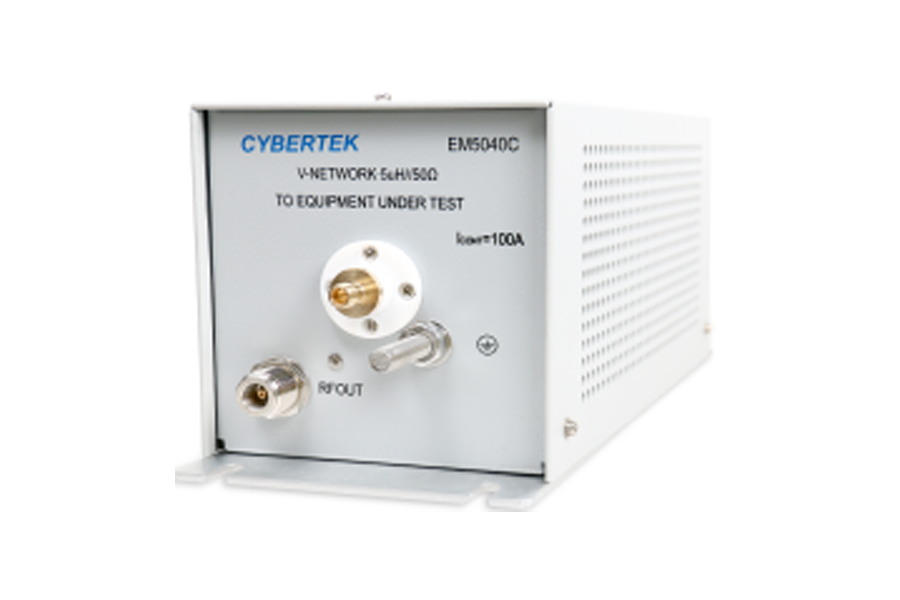

Cybertek EM5040C Line Impedance Stabilization Network (100kHz-200MHz/100A)

Frequency range: 100kHz—200MHz

Circuit type (5uH+1Ω）|| 50Ω

Measurement circuit phase number: Single wire

AC voltage/frequency range: 0～250VAC / 0～400Hz

DC voltage range: 0～600V

Power supply output connector: M8 bolt

Output current: Rating 100A; Short-time maximum current (<30s) 500A

Ground protection: 2*M8 bolt; The bottom metal panel (connected to the ground plane with screws)

Output connector: Standard 50Ω N female

Artificial hand: No

Output signal filter: No

Output signal limiter: No

Output signal common mode and differential mode separator: No

Operating temperature range: 0℃～45℃

Storing temperature: -20℃～70℃

Safety standard: EN61010-1

Size: 322mm（Length）×122mm(Width)×128mm（Height）

Weight: 1.8kg
