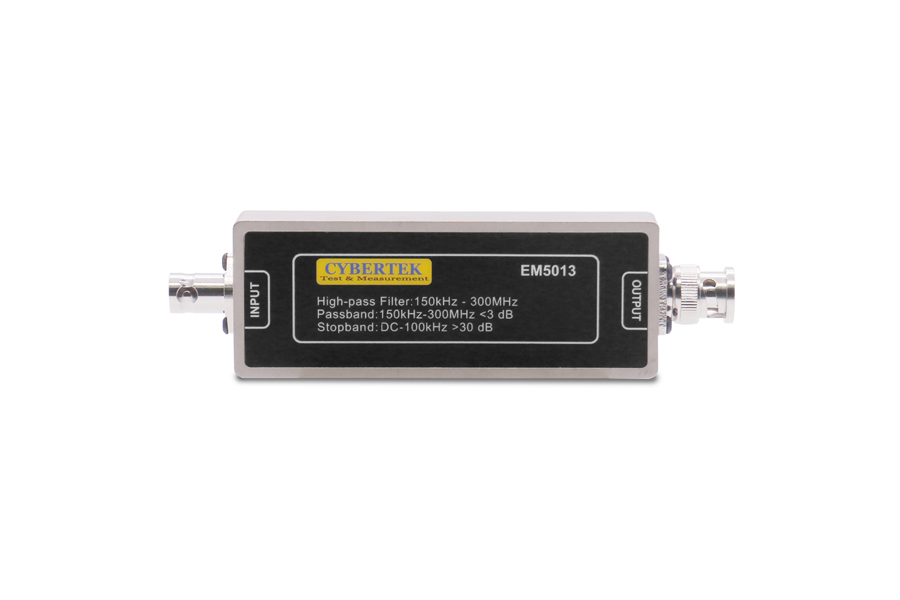

Cybertek EM5013 High Pass Filter (150kHz～300MHz/±3dB/50Ω)

Bandwidth: 150kHz～300MHz

Swing in channel: ±3dB

Impedance: 50Ω

Port:

Input: BNC (Female)

Output: BNC (Male)

Attenuation in stopband: >30dB @ ≤100kHz

Operating temperature: 0℃～55℃

Storage temperature: -40℃～80℃

Dimension: 132*37*20mm

Weight: 290g

EM5013 is a type of LC passive 150kHz high pass filter, mainly used to filtrate the interference signal below 150kHz with strong attenuation in stopband. In the EMI testing requiring filtration of interference signal below 150kHz, 150kHz high pass filter can be apply to the front of the receiver to avoid measuring error caused by the non-linear distortion of interference signal below 150kHz.
