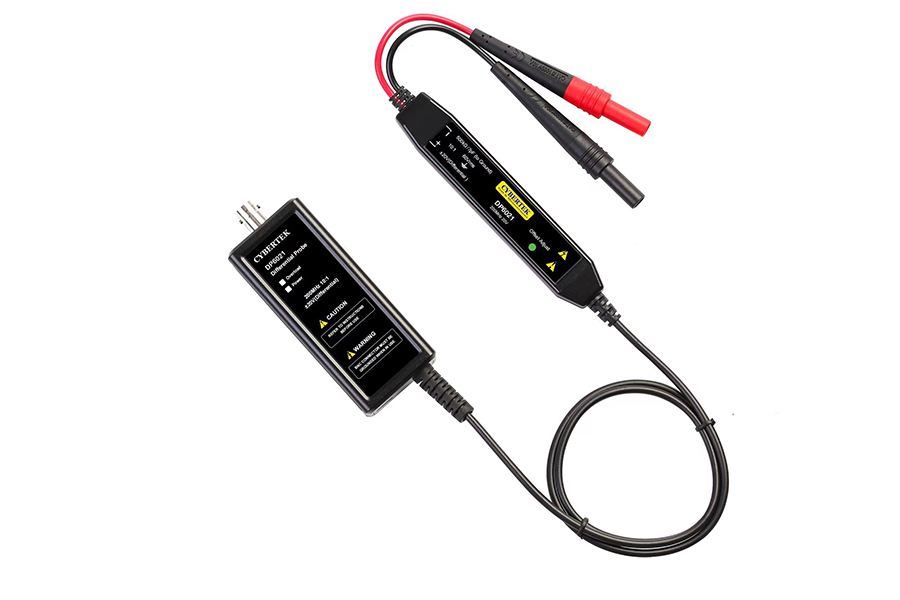

Cybertek DP6021 Low Voltage Differential Probe (20V/ 200MHz)

Bandwidth(-3dB): 200MHz

Rise time: ≤1.75ns

Accuracy: ±1%

Attenuation ratio: 10:1

(DC + Peak AC) Maximum differential voltagE: ±20V

Common mode voltage: ±60V

Maximum rated input voltage (to earth): ±60V

Input impedance

Single to earth: 500kΩ

Double input: 1MΩ

Input capacitance

Single to earth: ＜7pF

Double input: ＜3.5pF

Output voltage fluctuation: ±2V(50Ω Oscilloscope Input)

Offset (Typical value): ±2mV

Offset adjust range (Typical value): ±95mV

CMRR

50Hz/60Hz: ＞80dB

10MHz: ＞50dB

Noise(Vrms): 6mV

Overload indicator voltage threshold: ≥20V

Delay time

Probe main: 11ns

BNC(1m): 5ns

Overload indicator: Indicator will be lighted red when overload occurs

Terminal load requirement: 50Ω

Power supply: USB 5V/2A Adaptor
