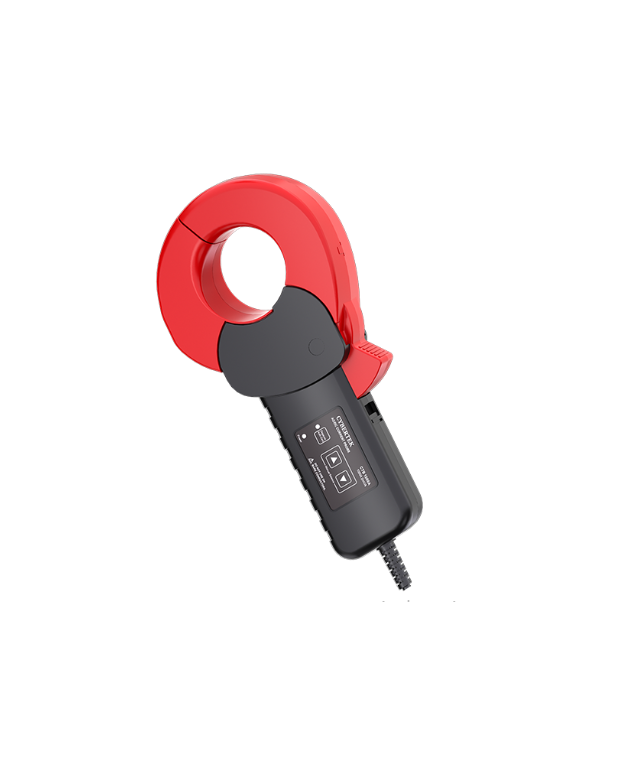

Cybertek CTB2000C High Accuracy Current Probe (2000A/50kHz, LEMO connector)

Name: Cybertek CTB2000C High Accuracy Current Probe (2000A/50kHz, LEMO connector)
Brand: Cybertek

ModelCTB2000C

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Rated current: DC2000A; AC2000APk

Bandwidth: 50kHz

Current transfer ratio: 1mV/A

Operating temperature and humidity range: -40℃~60℃, Below 80%RH (No dew)

Promised accuracy range: 0℃~40℃, Below 80%RH

Temperature drift coefficient: -40℃~0℃, 40℃~60℃ Amplitude Sensitivity: Below±0.02%rdg./℃, Offset Voltage:≤±0.01%f.s./℃

Diameter of measurable conductor: Φ Below 50 mm

Conductor position effect: Below±0.2%rdg.(Input 1000A,50Hz/60Hz, outerdiameter 30mm)

Power supply voltage: Type C use LEMO connector

Power supply capacity: Below ±600mA (1000A/45Hz measurement, power supply ±12V)

Manual
