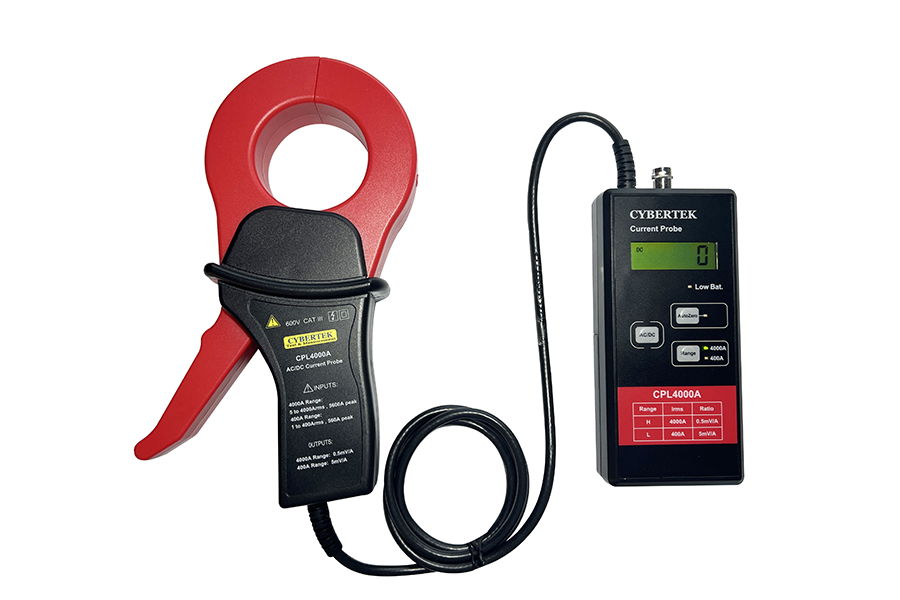

Cybertek CPL4000A Low Frequency AC/DC Current Probe (4000A/ 5kHz/ DC～5kHz)

Range: 400A; 4000A

Maximum measurable current: 400Arms; 4000Arms

Peak value current: 560Apk; 5600Apk

BNC output range Sensitivity: 5mV/A; 0.5mV/A

LCD display value: DC~400Hz RMS value

Typical precision（DC，45Hz~66Hz): ±3%rdg.±5mV; ±3%rdg.±1mV

BNC output bandwidth（-3dB）: DC～5kHz

Typical battery type and battery life: 4 AA alkaline batteries/ 72 hours

Operating Voltage: CATII 600V

Low Power Indication Function: Lighted red when battery voltage is lower than 4.3 V

Overload Indication Function: Buzzer will be activated when current under test surpass the range

Manual
