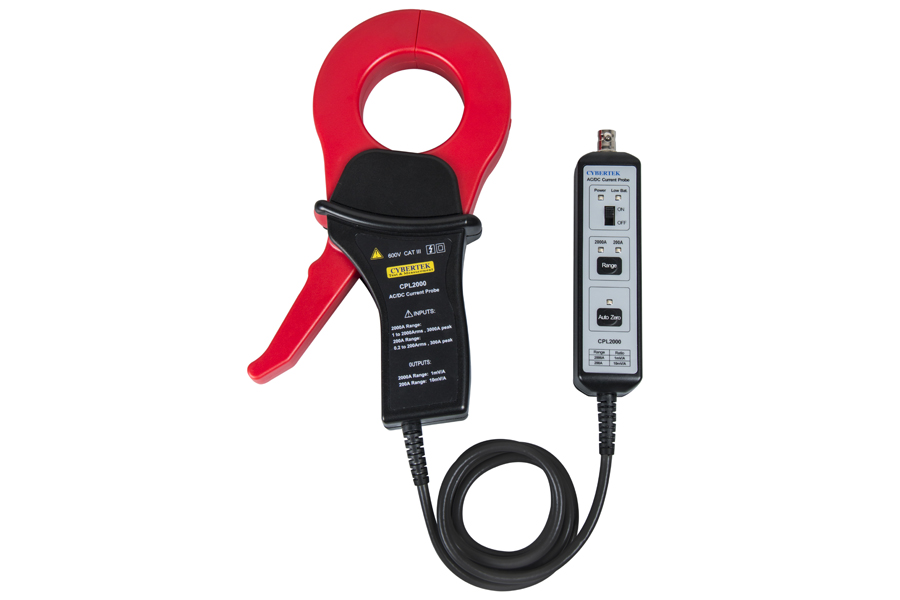

Cybertek CPL2000 Low Frequency AC/DC Current Probe (2000A/10kHz)
ManufacturerCybertek(View more products from this manufacturer)
ModelCPL2000
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Range: 200A; 2000A
Maximum Measurable Current: 200Arms; 2000Arms
Peak Value Current: 300Apk; 3000Apk
Range Sensitivity: 10mV/A; 1mV/A
Typical Precision (DC,45Hz~66Hz): ±2%rdg. ±5mV
Specification Precision (DC,45Hz~66Hz): ±2%rdg. ±1mV
Bandwidth（-3dB）: DC～10kHz
Typical Battery type and life: 9V alkaline cascade battery/ 15 hours
Operating Voltage: CATII 600V
Low Power Indication Function: Lighted red when battery voltage is lower than 6.5 V
Overload Indication Function: Buzzer will be activated when current under test surpass the range
