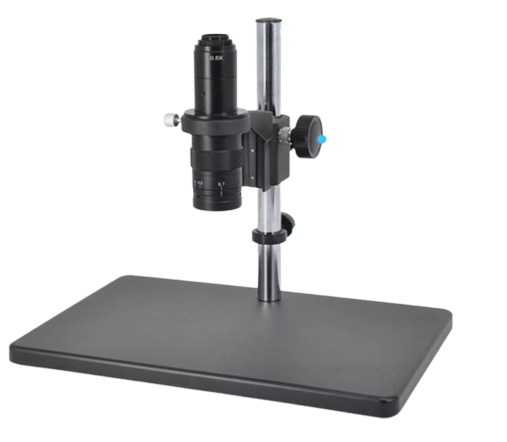

CXG Tools CXG-V2 Industrial high-definition microscope (7–45X; without camera)

Zoom ratio: (1:6.5) 0.7–4.5X (with 0.5X eyepiece as standard)

Working distance: 95 mm

Tube length: 168 mm

Net weight: 530 g

Magnification: 7–45X adjustable

Eyepiece magnification: 0.5X (standard), 1X optional

Objective magnification: 0.7–4.5X (approximately 10–200X on the display)

Connector: C-mount interface

①Large base(38CM*26CM) making it is stable,it not easy to tip over even when adjusted to a high angle

②The column height 33cm, lens can be moved up and down with lifting knob,enabling precise adjustment of the distance between the lens and the observed object for optimal focusing

③7-45X magnification monocular lens magnifler .Multi-magnification high-frequency zoom lens.Superior and stable optical performance,control image clarity by adjusting the magnification wheel.Meet the industrial online inspection needs of modern,electronic devices,semiconductors,mobile phone repair and more

④The zoom lens can be paired with a ring light source which provides uniform and focused illumination making lighting adjustment convenient for various observation scenarios

⑤The high-definition CCD camera supports photos capture and video record,adopts a spiral interface ensuring a more stable connection between components,and is fitted with a dust cover to conveniently protect the lens from dust and scratches during storage or non-use.

⑥dual-mode output:HDMI+USB.Connect to an external large display high-definition image quality with real-time output.

⑦Widely used in fields such as microelectronics, SMT,textiles,printing,and identification of appearance defect detection
