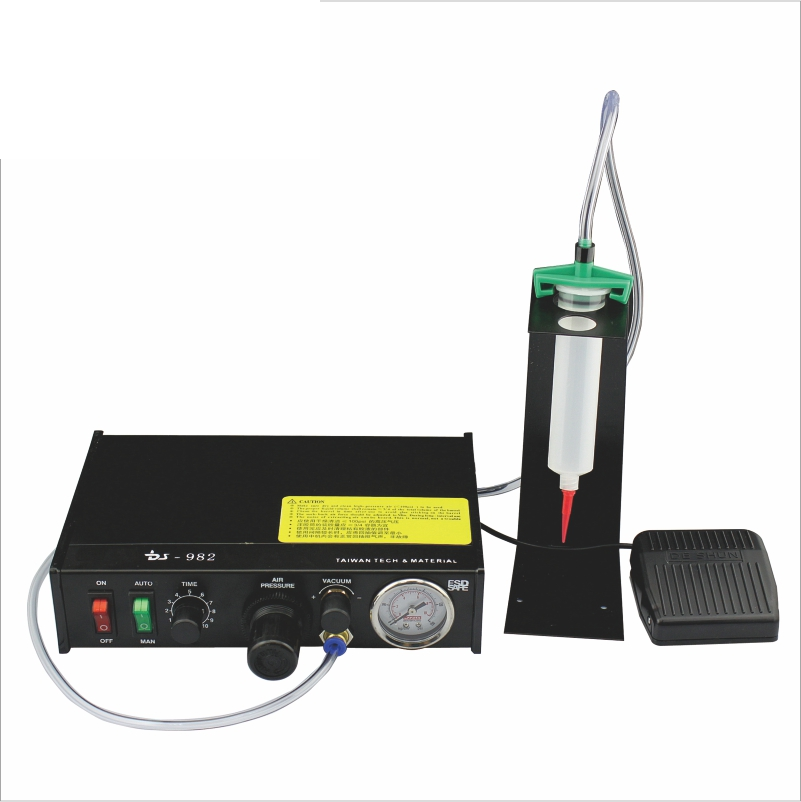

CXG Tools CXG-982 High-precision semi-automatic glue dispensiry machine

Automatic timing: 0.01–1 s; 0.1–10 s; 0.2–20 s; 0.3–30 s

Manual timing: Continuous pedal (line drawing) or single-touch pedal

Repeat accuracy: ±0.5%

Dimensions: 235 × 225 × 63 mm

Weight: Main unit 2.20 kg

Input power supply voltage: 220–240V, 50Hz AC

Internal voltage: 24V DC

Minimum injection volume: 0.01 ml

Input air pressure: 2.5–7 bar (35–100 psi)

Air pressure output: 0.1–5.5 bar (1–78 psi)
