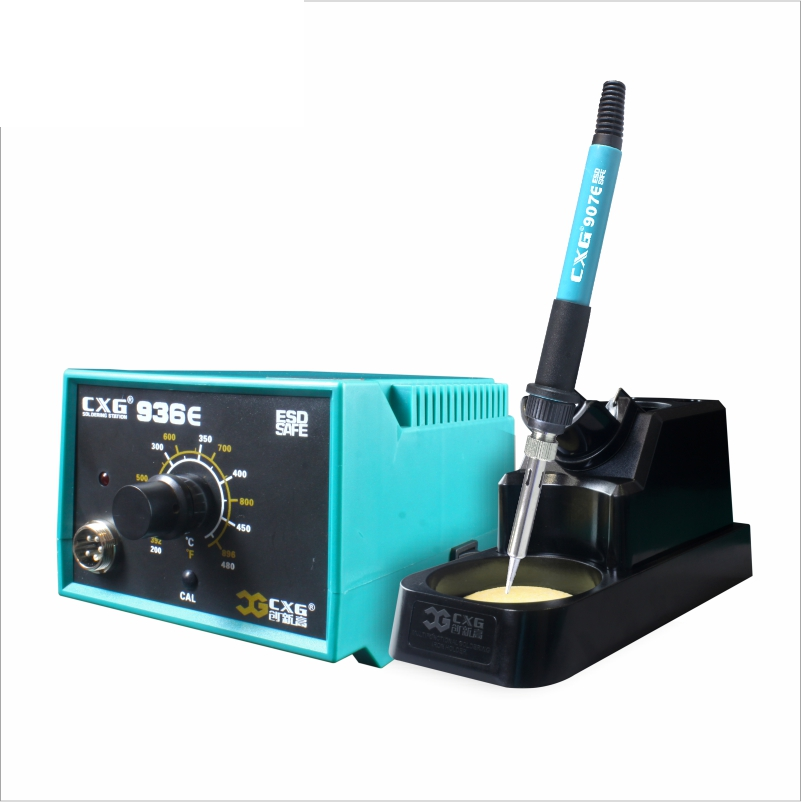

CXG Tools CXG-936E/60W The thermostatic soldering station (60W, 200~480°C)

Soldering Stations

Model: 936e

Power: 60W

Host: 936e constant temperature soldering station ESD

Output voltage: 24V

Temperature range: 200~480°C / 392~896°F

Size: 120(W) × 93(D) × 170(H) mm

Weight: 2030 g

Soldering Iron

Model: 907e-ESD

Power consumption: 24V / 60W

Soldering iron tip to ground resistance: ≤ 2Ω

Soldering iron tip to ground voltage: ≤ 2mV

Heating element: A1360 stainless steel heating core

High-temperature resistance set: GT01

Soldering tip: C8/900M Series

Wire length: 1.2 m

Handle length: 190 mm

Handle weight: 44 g

Rotating temperature controller, convenient and fast temperature adjustment

24V low-voltage output, stable ground impedance, can protect sensitive elements and ensure staff safety

The handle is especially lightweight and suitable for long periods of use

Soldering tip and heating core compatibility is good, use 900M series soldering tips

Anti-static, disassembling static electricity design
