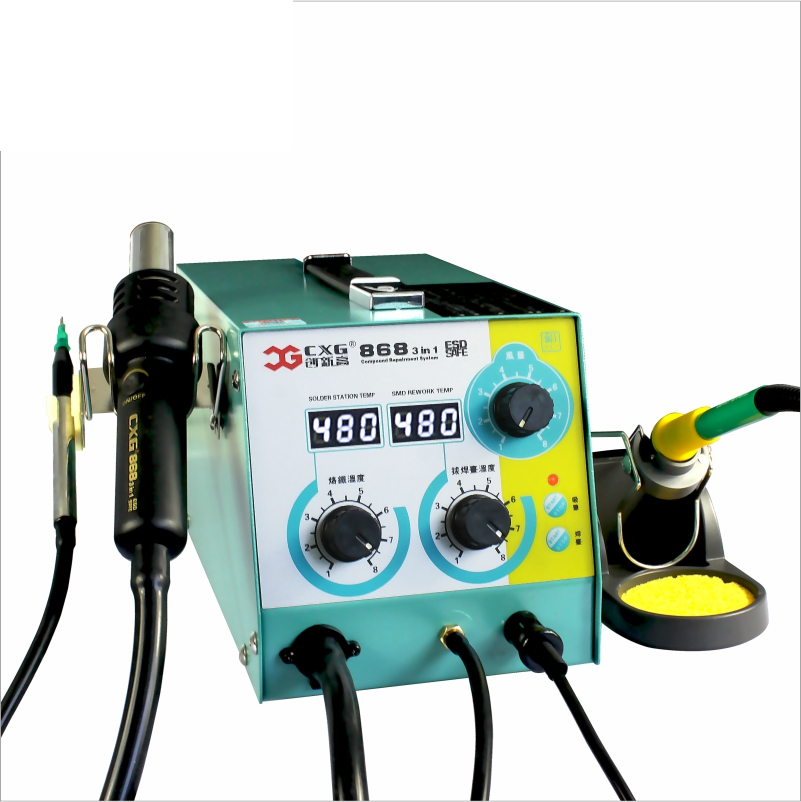

CXG Tools CXG-868 3 in 1 Soldering & Rework Station (710W, 100–480°C)

Total power: 710W

Soldering station (Hot air gun)

Model: 868 hot air gun

Power consumption: 80W

Temperature range: 100–480°C

Temperature stability: ±5°C (When there is no negative charge)

Output voltage: 24V

Soldering iron

Model: 868 soldering iron

Power consumption: 75W

Temperature range: 200–480°C

Tip to ground resistance: <2Ω

Tip to ground potential: <2mV

Tip length: 57.5 mm

Tip weight: 10g (with C9 soldering tip)

Wire length: 1.2 m

Heater: A1365

3 in 1 (soldering station, hot air station, suction pen) integrated maintenance system, excellent performance in various SMT soldering work

Each function can be controlled independently, saving energy and convenient

Soldering station with two power options available and the soldering iron temperature recovery quickly

Mechanical air volume control device is used in hot air station, the air output is particularly stable

The vacuum suction platform has strong suction and low noise, and can absorb electronic components weighing 120g
