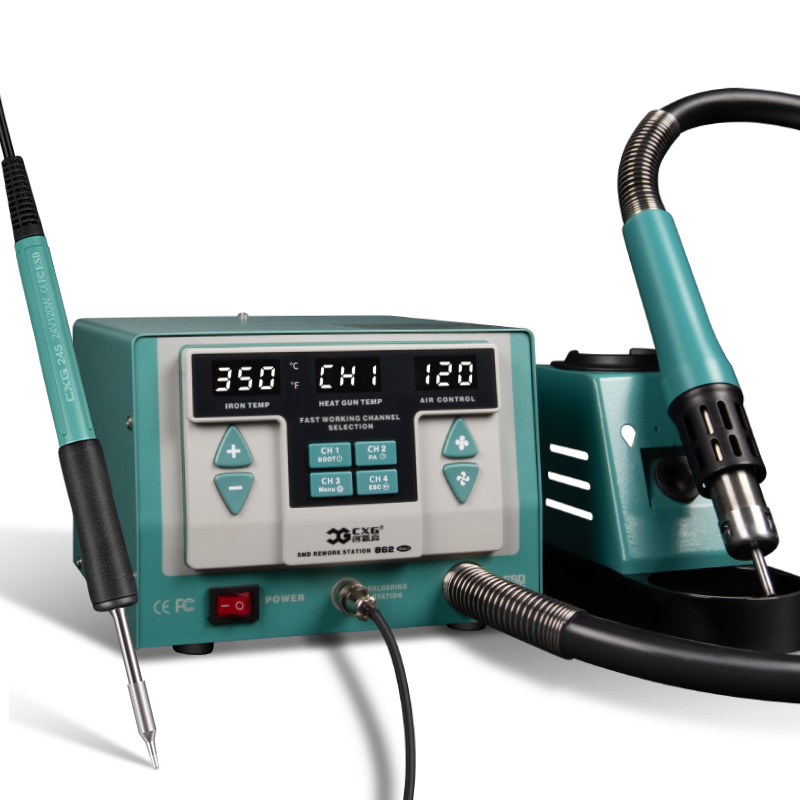

CXG Tools CXG-862-245 Digital Display Hot Air Gun Desoldering Station (245 Heater/1620W, 100–500°C)

Eddy current programming desoldering station

Model: CXG 862

Display: LED Display

Power: 1620W

Temperature range: 100–500°C (212–932°F)

Temperature stability: ±1°C

Voltage: AC220V/50Hz, AC110V/60Hz

Air volume: 1–120 level

Maximum air flow: 128 L/min

Dimensions: 180(L) × 195(W) × 128(H) mm

Net weight: 4.35 kg

Touch sensor hot air gun

Model: CXG860

Power: 1500W

Heater: 220V/A1158, 110V/A1157

High-temperature resistance set: GP10

Wire length: 850 mm

Weight: 0.3 kg

Optional soldering iron handle (suitable for electronic soldering)

Model: CXG 245 Soldering Handle

Power consumption: 120W

Integrated soldering tip: CXG T7 Series

Tip to ground resistance: ≤2Ω

Tip to ground potential: ≤2mV

Voltage: 24V

Wire length: 1.5 m

Weight: 70 g

Shortcut temperature setting function, timing function, auto sleep/standby function

(CH1, CH2, CH3, CH4) 4 sets of shortcut air volume/temperature for simplified operation

Automatic large air volume cooling function to extend heating element life and protect it

PID temperature control, temperature error less than ±1°C

Closed-loop sensor, microcomputer zero trigger temperature control, high power, rapid heating; output temperature remains accurate and stable regardless of air volume

Automatic shutdown time adjustable from 1 to 90 minutes

Electrostatic disassembly design, safe for sensitive components

Brushless turbine fan, adjustable air flow with wide range, suitable for various applications
