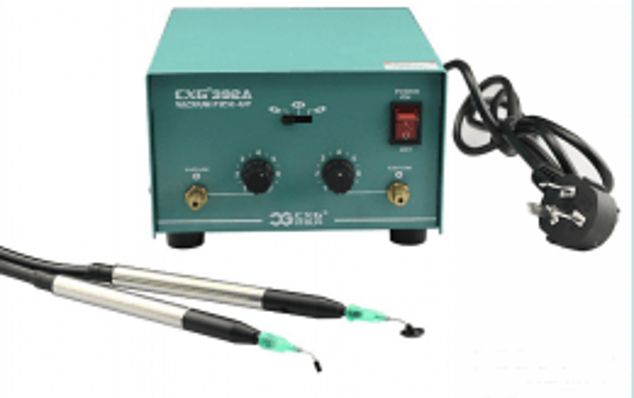

CXG Tools CXG-392A SMD suction station (10W)

Power consumption: 10W

Pump: Diaphragm

Maximum vacuum pressure: 280 mmHg

Dimensions (mm):

Main unit: 136 (W) × 160 (D) × 83 (H)

Vacuum pen: 123 (L) × 10 (outer diameter)

Hose: 1200 (L) × 6 (outer diameter)

Weight:

Console: 1.65 kg

Vacuum pen: 25 g

Bending nozzle / Straight nozzle:

Inner diameter: 0.4 mm and 0.8 mm

Outer diameter: 3 mm and 10 mm

Pad:

Outer diameter: 5 mm and 7 mm (purchased separately)

Material: Conductive silicone

Strong suction, low noise, long service life; can work continuously for more than 1000 hours.

Can pick up flat integrated circuits, resistors, and various round, small, and other objects.

Built-in diaphragm vacuum pump; no need to connect to an external air system.

Strong suction, capable of handling objects weighing up to 120 g.

Anti-static design; suction pen, pads, and hose are made of anti-static materials, safer for sensitive components.
