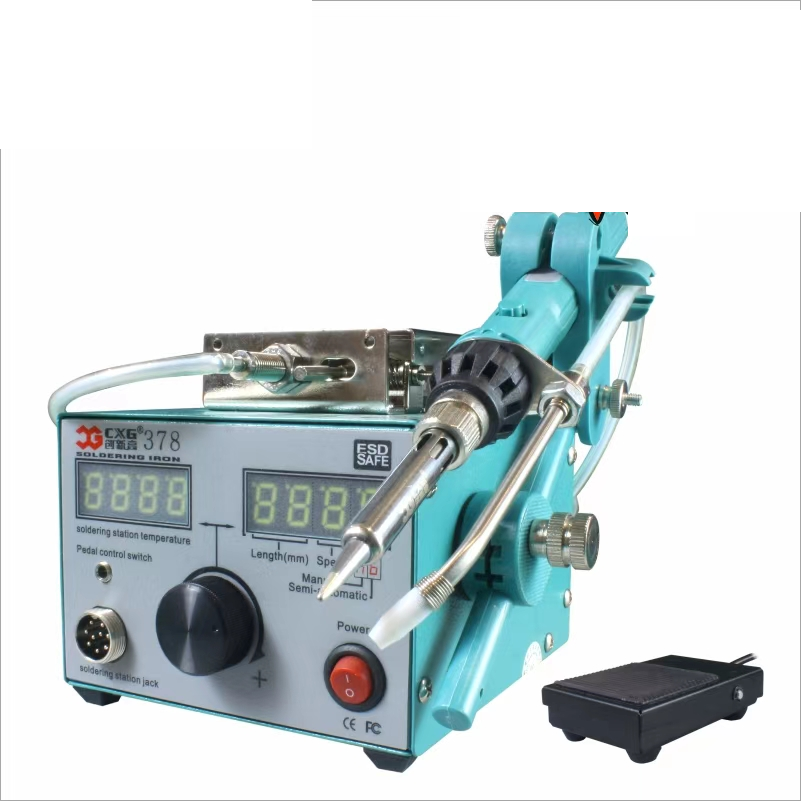

CXG Tools CXG-378 Automatic soldering station (80W, 80–500°C)

Tin supply volume: 1–99 mm

Tin supply speed: 1–9 level

Soldering station display: 4 digits LED display

Tin supply display: 4 digits LED display

Tin supply mode: Manual (H), Semi-automatic (B)

Driving motor: Stepper motor

Tin return volume adjustable: 1–50 mm

Power consumption: 5W

Temperature compensation set: ±50

Soldering station

Model: CXG 378

Power consumption: 80W

Temperature mode: °C / °F

Temperature range: 80–500°C / 176–932°F

Input voltage: AC110V/60Hz, 220V/50Hz

Applicable tin wire diameter: 0.6–1.6 mm

Product dimensions: 128(L) × 116(W) × 80(H) mm

Package dimensions: 250(L) × 210(W) × 135(H) mm

Package weight: 1.65 kg

Soldering iron

Model: CXG 901

Power consumption: 75W

Soldering tip: 900M

Ceramic heater: A1321B

Tip to ground resistance: ≤2Ω

Tip to ground voltage: ≤2mV

Handle cable length: 1.2 m

Handle length (without cable): 220 mm

Handle weight: 44 g

Features

The CXG 378 automatic tin feeding soldering station is convenient for continuous soldering work at one time. It can adjust the speed of tin delivery, tin delivery length, can achieve semi-automatic soldering effect according to different soldering needs, and high work efficiency.

Using high-precision stepper motor, large torque without blocking tin, tin feeding length 1mm~99mm adjustable, multi-function encoder one-button 360 degree rotation setting mode, can be multi-angle soldering adjustment, small size, light weight.

Using a double row of four LED large screen white display (display soldering iron temperature, tin feeding length, tin feeding speed, manual and automatic, can be set freely), 8-bit LED display, setting parameters at a glance.

Accurately control the length and speed of tin feeding, ensure the same size of solder joints, reduce the waste of tin wire, compared to manual saving 17% of tin wire.

Highly reliable metal anti-static design for safer soldering of sensitive components. Entering setting parameters is safer, faster and easier. Machines are more efficient and flexible than manual ones.

It is especially suitable for all kinds of electronic connectors, LED light strings, video and audio cable plugs, headphone cables, computer data cables, small circuit boards and small electronic components.
