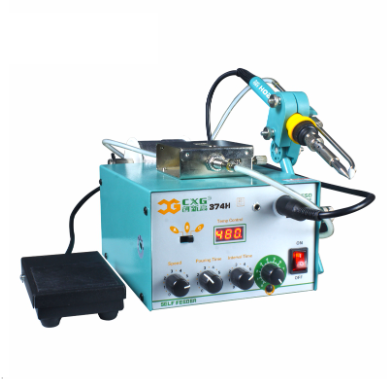

CXG Tools CXG-374H Automatic soldering station (120W, 200–480°C)

Product parameters

Tin feed time: 0–7 s

Speed: 6–28 rpm/min

Intervals: 0–14 s

Control mode: manual / automatic / fully automatic

Tin feed volume: 0.6–1.8 mm/s

Return tin volume: 0–6 mm (fixed speed)

Power consumption: 5W

Motor speed: 28 rpm/min

Soldering station

Model: CXG374H

Total power consumption: 120W

Motor and host power: 20W

Temperature range 200–480°C

Weight: About 3.4 kg

Input voltage: AC110V/60Hz, 220V/50Hz

Output voltage: 27V

External size: 175 × 142 × 95 mm

Soldering iron

Model: CXG374-920 / CXG374H-920H

Power consumption:

374 DC voltage 27V

374H DC voltage 27V

Iron tip ground resistance: ≤2Ω

Iron tip ground voltage: ≤2mV

Heating element: Ceramic heating core

Wire length: 0.9 m

Handle length: 190 mm

Handle weight: 44 g

Features

Automatic tin feeding system and lead-free soldering station two in one, more convenient for continuous soldering of multiple solder joints, according to different soldering needs to adjust the tin feeding speed, tin feeding time, solder joint and solder joint interval time, can achieve automatic soldering effect, high work efficiency.

Various tin feeding modes to choose from: manual/automatic/fully automatic

Manual switch and foot switch are configured.

Can adjust the amount of tin back to reduce tin waste.

Two functions to choose from, soldering iron return temperature fast, no high-frequency interference, environmental protection and energy saving.
