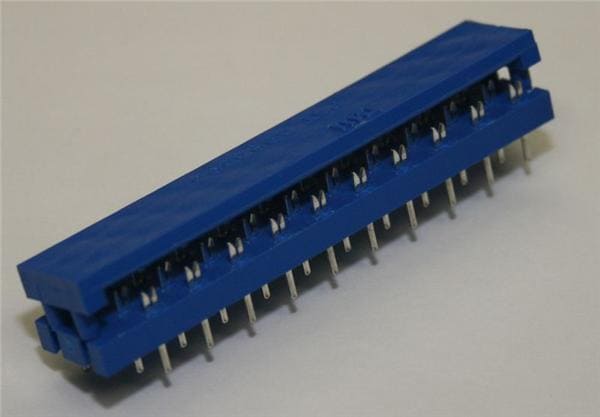

CW Industries CWR-142-26-0203 Ribbon Cable PCB Connector 26 Pin
ManufacturerCW Industries(View more products from this manufacturer)
ModelCWR-142-26-0203
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 1.27 mm (0.05 in)
Wire Gauge: 30 AWG to 28 AWG
Row Spacing: 2.54 mm (0.1 in)
Unit Weight: 8.669 g
Housing Color: Blue
Contact Gender: Pin (Male)
Current Rating: 1 A
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 2 Row
Contact Plating: Tin
Contact Material: Phosphor Bronze
Housing Material: Thermoplastic
Termination Style: IDC
Flammability Rating: UL 94 V-0
Number of Positions: 26 Position
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
