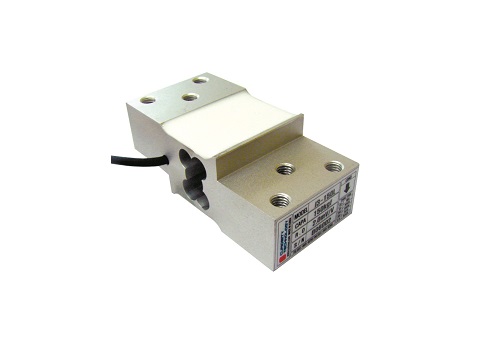

CURIOTEC J3-150K Single Point Load Cell (150kgf)
ManufacturerCURIOTEC(View more products from this manufacturer)
ModelJ3-150K
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Max.Capacity (kgf ): 150
Rated output ( mV/V): 2.0±0.2
Zero balance ( mV/V): 0.0±0.05
Combined error (%RO): 0.05
Repeatability (%RO): 0.02
Creep (30 min.) (%RO): 0.03
Temperature effec on
+ Zero value (%RO/10℃ ): 0.05
+ Output value (%RO/10℃ ): 0.05
Excitation
+ Recommend (V ): 10
+ Maximum ( V): 15
Resistance ():
+ Input (Ω ): 1180±100
+ Output ( Ω): 1000±10
Insulation ( ㏁): ＞2000
Compensated temp.range (℃): -10~+40
Operating temp, ( ℃ ): -20~+80
