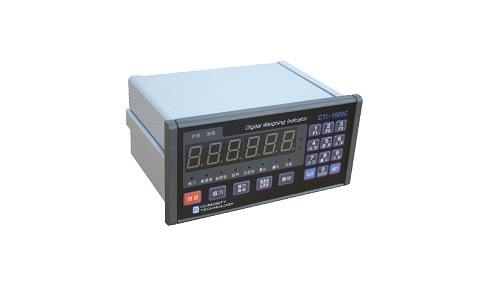

CURIOTEC CTI-1000C Digital Weighing Indicator

Analog & A/D Conversion

Input Sensitivity: Min. 0.2 /Digit

Load cell Excitation: DC 5V

Non-Linearity: 0.003% of Full Scale

Max, Input Signal: 3 mV/V

Resolution: Internal: 1/520 000(19 bit), External: 1/20 000

Digital Part

Main Display: 7 Segments, Character height 20mm

Condition display Lamp: TARE, GROSS, NET,EXT,PRINT.COM,HOLD,AUTO

Φ3 Red LED Display: g, kg, t

General Part

Power Supply: AC 110/220V, 50/60Hz, About 20W

Operating Temperature Range: -10°C~+40°C

Operating Humidity Range: Under 85% Rh

Product Size/Weight: 198(W) x 99(H) x 101(D) mm / NET 1.20 kg Gross 1.7kg

Communication: RS-232C & CURRENT
