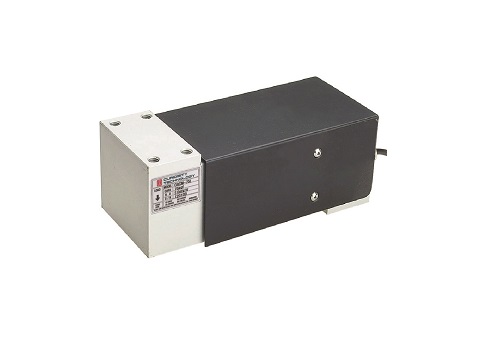

CURIOTEC CBCM-250K Load cell (250kgf)
ManufacturerCURIOTEC(View more products from this manufacturer)
ModelCBCM-250K
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Max.Capacity (kgf ): 250
Rated output ( mV/V): 2.0±0.2
Zero balance ( mV/V): 0.0±0.1
Combined error (%RO): 0.03
Repeatability (%RO): 0.01
Creep (30 min.) (%RO): 0.03
Temperature effec on
+ Zero value (%RO/10℃ ): 0.028
+ Output value (%RO/10℃ ): 0.014
Excitation
+ Recommend (V ): 10
+ Maximum ( V): 15
Resistance ():
+ Input (Ω ): 400±20
+ Output ( Ω): 350±3.5
Insulation ( ㏁): ＞2000
Compensated temp.range (℃): -10~+40
Operating temp, ( ℃ ): -20~+80
