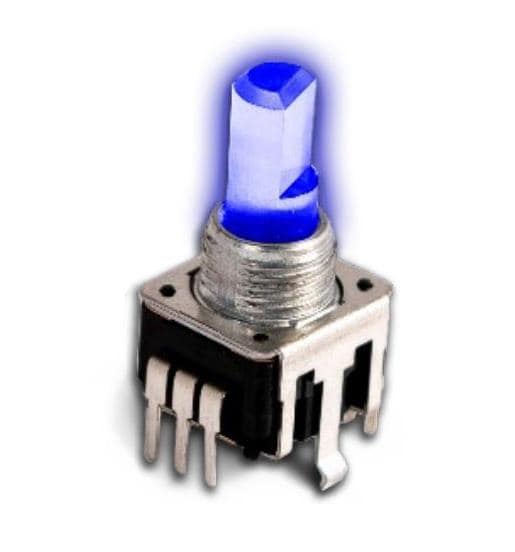

CTS Electronic Components 12VR1S20F2N103B1 Illuminated Blue LED 100kOhm -10C +70C Flat Shaft

Life: 15000 Cycle

Taper: Linear

Width: 12.4 mm

Height: 7.4 mm

Length: 13.2 mm

IP Rating: IP40

Tolerance: 20 %

Resistance: 10 kOhms

Shaft Type: Flatted / D

Orientation: Horizontal

Switch Type: No Switch

Unit Weight: 4 g

With Switch: No Switch

Element Type: Carbon

Power Rating: 50 mW (1/20 W)

Shaft Length: 20 mm

Mounting Style: PCB Mount

Shaft Diameter: 6 mm

Voltage Rating: 50 VAC, 10 VDC

Number of Gangs: 1 Gang

Number of Turns: 1 Turn

Number of Detents: Without Detent

Termination Style: PC Pin

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 10 C
