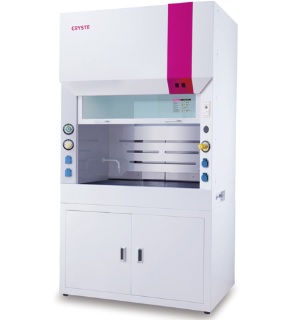

CRYSTE PURIFUME 1500 Fume hood

Size

Inner(W x D x H)mm: 1300 x 610 x 1000

Out(W x D x H)mm: 1500 x 866 x 2376

Weight: 284kg

Base Stand(H)mm: Stand 757

Type: Bypass air type

Controller: Standard : Lamp, blower On/Off Switch

Sash: Weight balanced sliding tempered safety glass

Base Stand: Storage Cabinet

Inside Material: Phenol laminate

Outside Material: Epoxy powder coated steel plate

Worktop Material: Phenol laminate

Duct: Ø200 / Ø250 / Ø300

Gas Valve: 1EA

Water Valve: 1EA

Air Valve: 1EA

Consent: 220V x 2EA(Right), 110V x 2EA(Left) with reinforced cover

Sink: Cup sink(PP material) x 1EA(190Lx110Dx170H mm)

FL Lamp: 20W x 1EA

Power: AC 220V, 50/60Hz, 1Phase

Power Consumption: 20W (505W in a blower option)

Safety: Separate earth leakage circuit breaker

OPTION

Blower(Sirocco type1/4HP / 1/2H PFM-15-OP1

Add. Gas Valve & Cock  PFM-15-OP4

Add. Water Valve & Cock   PFM-15-OP5

Add. 220V Consent  PFM-15-OP6

Add. 110V Consent PFM-15-OP7

*Square Sink(540 * 335* 240 mm)   PFM-15-OP8

Extra Hole:  PFM-15-OP9

SPARE

FL Lamp(20W/30W)  PFM-15-SP1

Cup Sink(PP)   PFM-15-SP2

Square Sink(PP)   PFM-15-SP3

Trap(PP)   PFM-15-SP4

Gas Valve   PFM-15-SP5

Gas Cock   PFM-15-SP6

Water Valve   PFM-15-SP7

Water Cock   PFM-15-SP8
