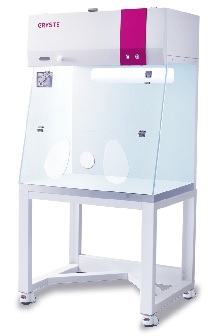

CRYSTE PURIFUME_DUCTLESS 1200 Purifume Ductless (35W)

Size

Inner(W x D x H)mm; 1200 x 625 x 790

Out(W x D x H)mm: 1220 x 660 x 1830

Weight(Kg): 170

Base Stand(H)mm: Stand 730 (Included Caster 82)

Controller

Standard : LED lamp, blower On/Off Switch

Inside Material:Transparent acrylic

Outside Material: Epoxy powder coated steel plate

Worktop Material: Phenol laminate

Filter: Filter Check Cartridge

Pre Filter: Polyester fibers

Carbon Filter: carbon filter(ACID+NH3 +VOCs)

Airflow Velocity: 0.30 ~ 0.70 m/s

Inlet Hole: 100Ø inlet hole

Lamp: LED lamp

Noise (dB): <60dB

Brightness (Lux): >700

Power: AC 230V, 50/60Hz, 1Phase

Power Consumption: 35W

Safety: Fuse installed noise filter

OPTION

Change To Acid+VOCs Filter  PFD-12-OP1

Change To NH3+VOCs Filter  PFD-12-OP2

HEPA Filter  PFD-12-OP3

Without Stand  PFD-12-OP4

*CUP Sink & Trap(PP)  PFD-12-OP5

*Square Sink & Trap(PP)  PFD-12-OP6

*Gas Valve & Cock  PFD-12-OP7

*Water Valve & Cock  PFD-12-OP8

*Add. Inlet Hole  PFD-12-OP9

SPARE

Hybrid Filter(Acid+NH3+VOCs)  PFD-12-SP1

Acid+VOCs Filter  PFD-12-SP2

NH3+VOCs Filter  PFD-12-SP3

Cup Sink(PP)  PFD-12-SP4

Square Sink(PP)  PFD-12-SP5

Trap(PP)  PFD-128-SP6

Gas Valve  PFD-12-SP7

Gas Cock  PFD-12-SP8

Water Valve  PFD-12-SP9

Water Cock  PFD-12-SP10

ON/OFF Switch  PFD-12-SP11
