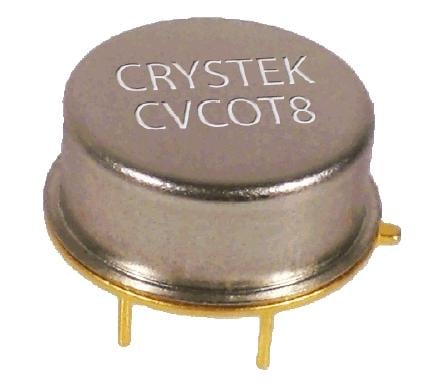

Crystek Corporation CVCOT8BE-2100-2200 VCO 2100-2200MHz 5Volts -40C +85C
ModelCVCOT8BE-2100-2200
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Height: 5.33 mm
Pushing: 1 MHz/V
Frequency: 2.1 GHz, 2.2 GHz
Power - dBm: 0 dBm
2nd Harmonic: - 15 dBc
Current Rating: 25 mA
Load Capacitance: 15 pF
Phase Noise Type: - 101 dBc/Hz
Termination Style: Radial
Tuning Sensitivity: 55 MHz/V
Supply Voltage - Max: 5 V
Supply Voltage - Min: 5 V
Tuning Voltage Range - Vt: 500 mVDC to 4.5 VDC
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
