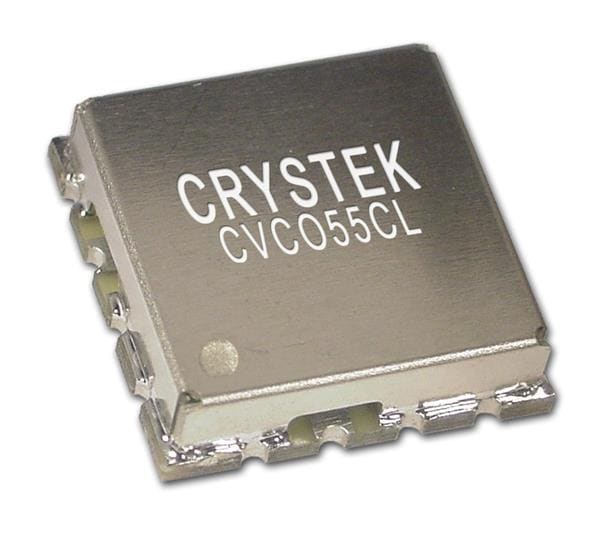

Crystek Corporation CVCO55CC-0775-0800 CRO 775-800MHz 5V 50 Ohm -30C +70C

Width: 12.7 mm

Height: 5.59 mm

Length: 12.7 mm

Pushing: 0.2 MHz/V

Frequency: 775 MHz to 800 MHz

Power - dBm: 5 dBm

2nd Harmonic: - 15 dBc

Current Rating: 30 mA

Phase Noise Type: - 123 dBc/Hz

Termination Style: SMD/SMT

Tuning Sensitivity: 6 MHz/V

Supply Voltage - Max: 5.25 V

Supply Voltage - Min: 4.75 V

Tuning Voltage Range - Vt: 300 mVDC to 4.7 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
