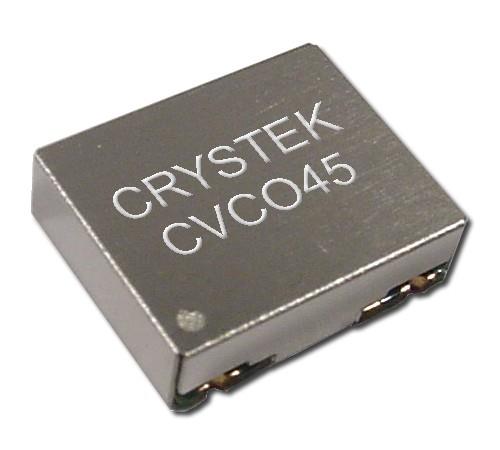

Crystek Corporation CVCO45CL-0421-0441 VCO 421-441MHz

Width: 10.16 mm

Height: 4.2 mm

Length: 12.7 mm

Pushing: 0.5 MHz/V

Frequency: 421 MHz to 441 MHz

Power - dBm: 0 dBm

2nd Harmonic: - 15 dBc

Current Rating: 10 mA

Mounting Style: SMD/SMT

Load Capacitance: 100 pF

Phase Noise Type: - 100 dBc/Hz

Termination Style: SMD/SMT

Tuning Sensitivity: 15 MHz/V

Supply Voltage - Max: 5.25 V

Supply Voltage - Min: 5.25 V

Tuning Voltage Range - Vt: 300 mVDC to 2.7 VDC

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 45 C
