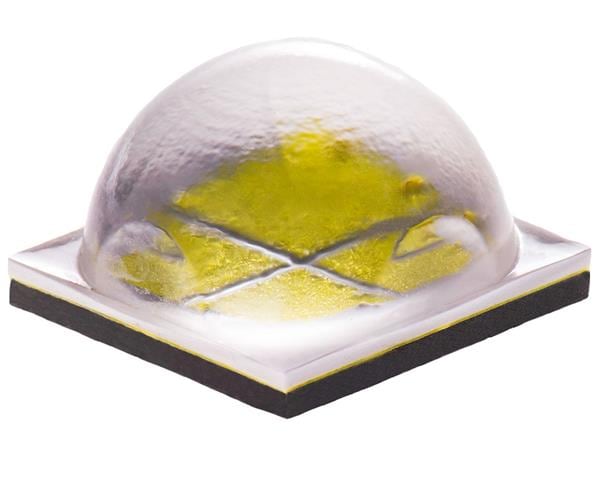

Cree LED XHP70A-01-0000-0D0HM235G High Power LEDs White 3500 K 80-CRI, XLamp XHP70A

Width: 7 mm

Height: 4.49 mm

Length: 7 mm

Features: Configurable to 6 V at 2.1 A

LED Size: 7 mm x 7 mm x 4.49 mm

Lens Color: Colorless

Lens Shape: Dome

Unit Weight: 300 mg

Power Rating: 12.6 W

Viewing Angle: 120 deg

Mounting Style: SMD/SMT

Lens Dimensions: 7 mm

Lens Transparency: Water Clear

Illumination Color: Warm White

If - Forward Current: 1.05 A

Vf - Forward Voltage: 12 V

Vr - Reverse Voltage: 5 V

Luminous Flux/Radiant Flux: 1380 lm

Color Rendering Index - CRI: 80

Wavelength/Color Temperature: 3500 K

Maximum Operating Temperature: + 85 C
