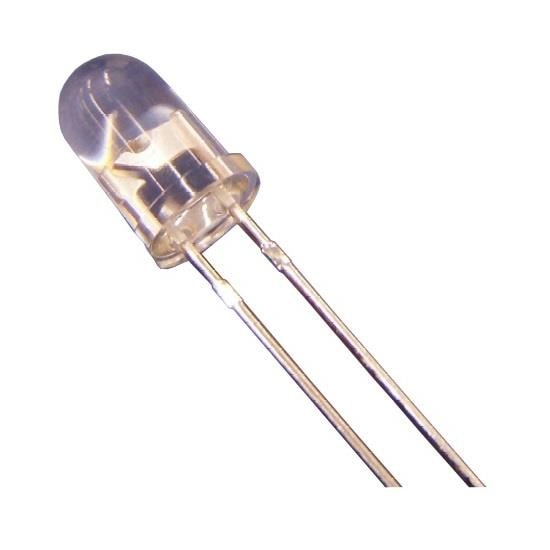

Cree LED C512A-WNS-CZ0B0152 High Power LEDs Cool White 4600K 8200-23500mcd

Width: 5.9 mm

Height: 8.8 mm

Length: 5.9 mm

LED Size: T-1 3/4 (5 mm)

Lens Color: Colorless

Lens Shape: Dome

Unit Weight: 620.229 mg

Power Rating: 100 mW

Viewing Angle: 25 deg

Mounting Style: Through Hole

Lens Dimensions: 5 mm

Lens Transparency: Water Clear

Illumination Color: Cool White

Luminous Intensity: 18000 mcd

If - Forward Current: 20 mA

Vf - Forward Voltage: 3.2 V

Vr - Reverse Voltage: 5 V

Wavelength/Color Temperature: 9000 K

Maximum Operating Temperature: + 95 C

Minimum Operating Temperature: - 40 C
