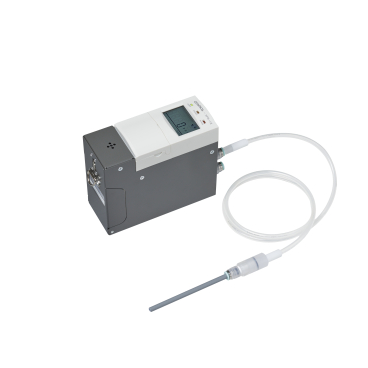

COSMOS XPS-7II Portable Semiconductor Gas Detector

Detection Principle: Electrochemical, Electrochemical + pyrolyzer

Target Gas: Semiconductor gases

Sampling Method: Extractive

Measuring Range: As per delivery specifications

Accuracy *1: ±10%F.S. except for XDS-7NF; -30%F.S. to +10%F.S. for XDS-7NF

Response time *1: T60: Less than 60 seconds

Display: Four-digit on LCD

Power Source: Alkaline AA battery x 4pcs or Dedicated 100-240VAC/6VDC adapter (optional) *3

Continuous Operating Time*2: More than 12 hours except for XDS-7NF; More than 8 hours for XDS-7NF; (by alkaline AA batteries (Toshiba LR6AN) at 20℃, with no gas alarm)

Operating Temperature and Humidity: 0 to +40ºC, 30 to 85%RH

Compliance: CE (EMC: 2014/30/EU) *3 *4

Dimensions: Approx. W62 × H150 × D128 mm (excluding protrusions)

Mass: Approx. 1.3 kg
