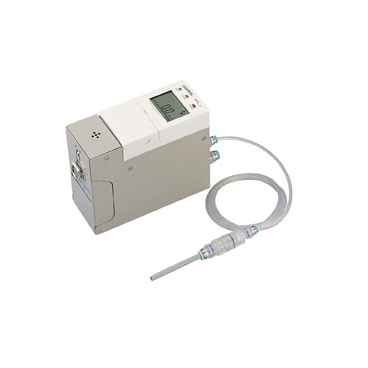

COSMOS XPS-7 Portable Semiconductor Gas Detector

Detection Principle: Electrochemical cell

Gas Detected: Semiconductor gases

Sampling Method: Extractive

Detection Range: Depends on the specifications

Resolution: 1/100 of full scale

Indication Accuracy: ±10% of full scale

Alarm Mode: 2nd stage alarm type

Alarm Indication: Intermittent buzzer, flashing lamp

Response Time: 60s or less (60% response)

Operating Temperature: 0 to 40°C

Power Source: 4 x AA alkaline dry cells (*1) or an AC adaptor

Battery Life*2: Up to 12 hours (by alkaline dry cells at 20℃ without alarms)

Dimensions: W62 x H150 x D128mm (excluding protrusions)

Weight: Approx. 1.3kg

Standard Accessories: Gas sampling hose with probe, shoulder strap, 4 x AA alkaline dry cells, Spare filters

Optional Accessories: AC adaptor (100 VAC/6 VDC), sensor stocker, log data collection kit
