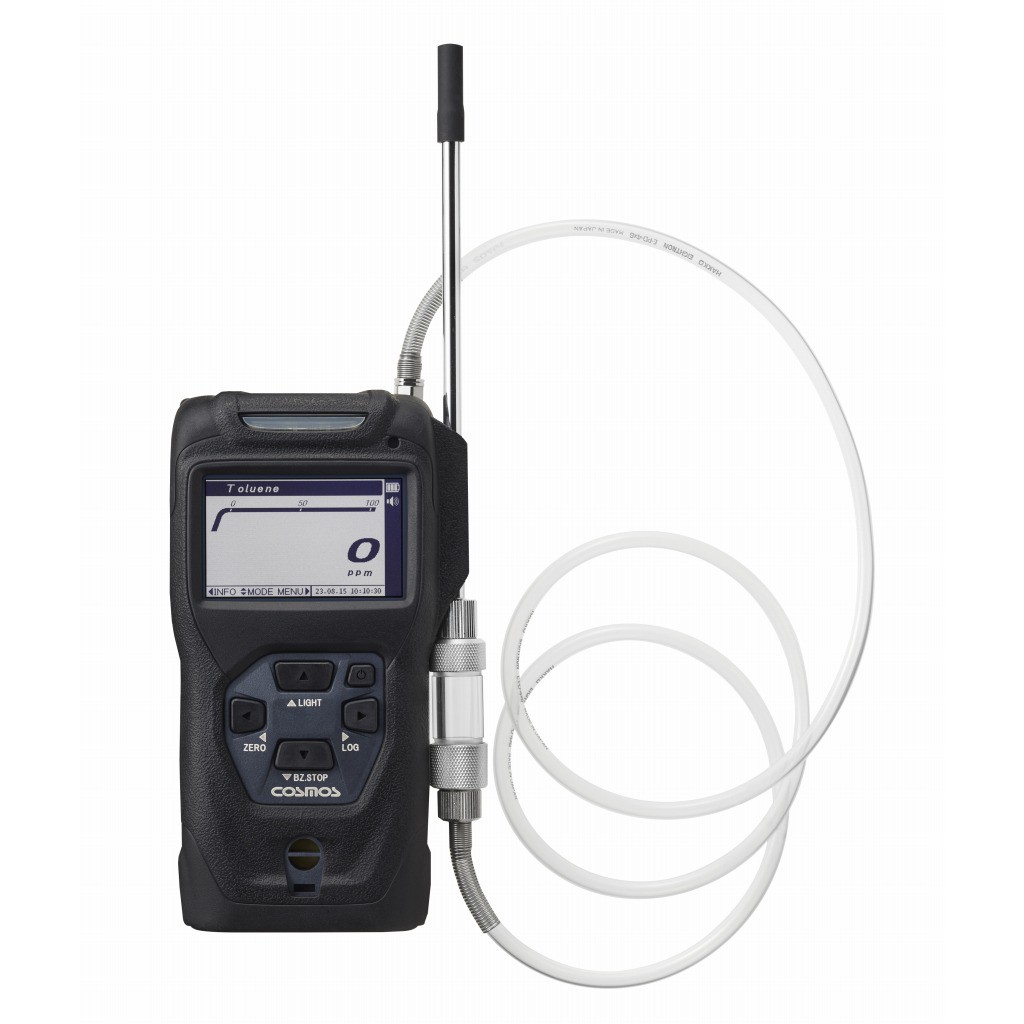

COSMOS XP-3320II-V Chemical real-time monitor (VOC: 0-1000ppm)

Target Gases: VOC calibration gas: Toluene

Gas Sampling Method: Automatic suction-type

Sensor Type: Hot wire semiconductor

Detection Range: 0-1000ppm

Power Source: 4 AA alkaline batteries; Or 4 AA size nickel-metal hydride rechargeable batteries

Continuous Use Time *1: Approximately 22 hours

Operating Temperature and Humidity Range: 0 to +40°C, 85%RH or less (However, there should be no condensation or sudden changes in temperature or humidity.)

Certifications: Alkaline battery specifications: Ex ia da IIC T4 Ga; Nickel-metal hydride battery specifications: Ex ia da IIC T3 Ga

Protection Rating: IP67 equivalent

Wireless Communication: Bluetooth 5.0 *5

External Dimensions: W91 × H164 × D44mm (excluding protrusions)

Weight: Approx. 460g (including batteries)

Standard Accessories: Shoulder belt, 1m gas sampling hose for solvents, filter element, LCD protective film, alkaline battery (or nickel-metal hydride battery)

*1 25°C, no alarm, backlight off, data logging OFF, and Bluetooth OFF.

Features

Real-time monitoring ideal for identifying where chemical substances are being generated or accumulated

It is possible to convert to approximately 100 types of gas based on toluene, which is the calibration gas.*1

Trend graphs can be displayed on the device or in the dedicated app*2

Significantly improved impact resistance

*1 Reference value *2 Optional log data collection software (sold separately) is required to read log data on PC.
