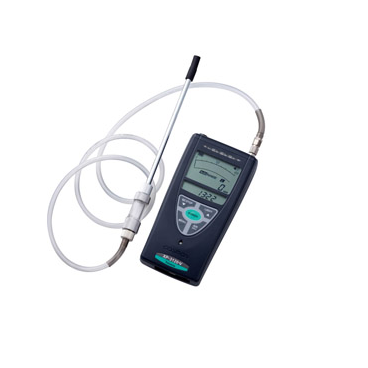

COSMOS XP-3120-V Real-time VOC monitor

Gas Detected: VOC (Calibration Gas: Toluene)

Sampling Method: Extractive

Detection Principle: Hot-wire semiconductor

Detection Range: Low range: 0 to 100 ppm; High range: 0 to 1000 ppm

Indication Accuracy: ± 10% of full scale

Display: Main LCD: Digital-LCD with backlight; Sub LCD: Clock display

Alarm: Non-alarm

Explosion-proof Structure: Ex ib d IIB T3 (TIIS)

Operation Temperature: 0 to +40 °C

Power Source: 4 x AA alkaline dry battery

Continuous Operation: With alkaline battery: approx 25 hours (at 20°C, backlight OFF)

Dimensions: W82 x H162 x D36 mm

Weight: Approx. 450g (excluding batteries)

Standard Accessories: Soft case, 4 x AA alkaline dry battery, Gas sampling hose (1m, for solvent model SH-401), Replacement filter, Probe with filter/moisture trap

Optional Items: Datalogger kit (CD-ROM + USB cable), AC adaptor, Activated carbon filter set
