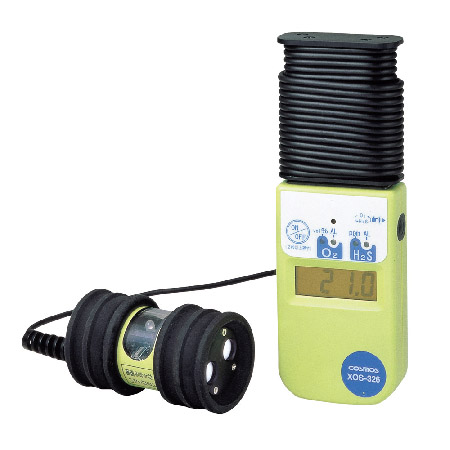

COSMOS XOS-326 Oxygen and hydrogen sulfide concentration meter (O2: 0.0~25.0vol%; H2: 0.0~30.0ppm)

Target Gas 1: Oxygen

Sensor Type: Galvanic cell

Detection Range (Reference Indication): 0.0 to 25.0vol% (25.1 to 99.9vol%)

Display Resolution: 0.1vol%

Alarm Set Value – 1st: 19.5vol%

Alarm Set Value – 2nd: 18.0vol%

Response Time: ≤20s sec. (90%)

Target Gas 2: Hydrogen sulfide

Sensor Type: Electrochemical

Detection Range (Reference Indication): 0.0 to 30.0ppm (30.5 to 50.0ppm)

Display Resolution: 0.5ppm

Alarm Set Value – 1st: 10.0ppm

Alarm Set Value – 2nd: 15.0ppm

Response Time: ≤30s sec. (90%)

Operating Temperature: -10 to 40°C

Power Source: 2 × AA alkaline batteries, approx. 50 hours

Dimensions: Main unit: W66 × H195 × D29mm; Sensor part: Φ44 × H75mm; Sensor cable: 5m

Weight: Approx. 450g

Accessories: Soft case, shoulder strap, 2 × AA alkaline batteries, 2 × filter element

Features

Oxygen and hydrogen sulfide concentration meter with separate sensor unit (submersible type)

A 5m sensor extension cable is included as standard equipment.

The sensor unit has a splash-proof structure (the display unit also has a leather case for basic splash resistance).
