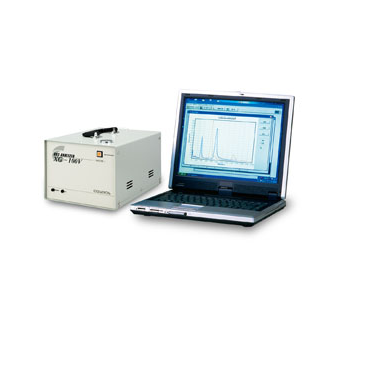

COSMOS XG-100V Portable VOC Analyzer

Substance Measured: Toluene, xylene, ethyl benzene and styrene

Measurement Range (measuring toluene: Minimum detection limit: 4mg/m3, 1ppb; Maximum detection limit: 3700mg/m3, 1000ppb

Repeatability: Within ±5% (RSD) (Toluene 70ppb)

Carrier Gas: Atmospheric air

Sample Injection Method: Direct injection by syringe (sample volume: 10ml)

Operating Temperature: 5 to 35 °C

Power Source: 100 VAC, 50/60 Hz

Dimensions: W240 x H190 x D380 mm

Weight: Approx. 10kg

Standard Accessories: Data analysis software (hardware requirement: Windows XP), calibration gas, 3 x syringes for sample injection, AC power cable, RS232C cable, USB-RS232C conversion cable, 8 x C alkaline dry cells.
