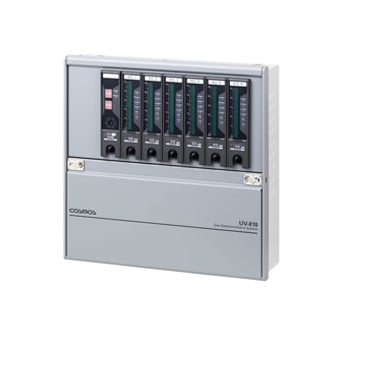

COSMOS UV-810 Multi-point Type Gas Alarm System (15 points)

Number of Indicator Units: Up to 15 points (line up: 3/6/9/12/15 point type) *

External Outputs:

+ Terminal for collective alarm: Alarm1, Alarm2, Fault; Energised/de-energised & latching,non-latching * Collective alarm contacts of 1st alarm and 2nd alarm can be changed to 1b contact (need to specify)

+ Terminal for individual alarm: Alarm1, Alarm2, Fault

+ Analog output: Gas concentration analog output signal: 4-20 mA, selectable from 1-5 V (need to specify)

Power Supply: AC specification: 100-240 VAC +10%; DC specification: 24 VDC +10% (need to specify)

Operating Temperature: -10 to +40 °C (excluding rapid temperature change)

Operating Humidity: 10 to 90 %RH (excluding rapid temperature change, non-condensing)

Weight: UV-810-5.5-13.5 kg UVB-810-8.0-16 kg (depends on the number of units)
