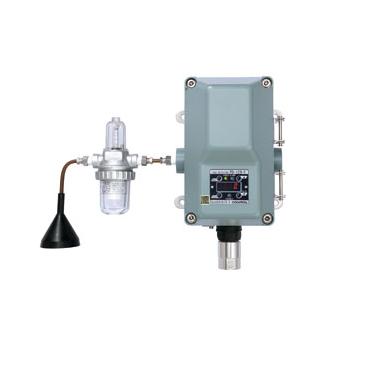

COSMOS PD-12A Combustion Gas, Toxic Gas Fixed Detector Head (ppm; Hot wire semiconductor)

Target Gas: Combustible gas; toxic gas, ect

Sensor type: Hot wire semiconductor

Detection Range: ppm

Repeatability: F.S: ±20%

Power supply: 24 VDC (18-30VDC)

Power consumption: 7.5W max

Flow rate: over 0.5L/min

External Output:

・4-20mADC(common negarive with power supply)

・1a non-voltage contact output (automatic return)

Approvals: II 2 G Ex db + H2 T4 Gb (ATEX); Ex d IIB + H2T4 X (Janpan EX); IP65 rating

Temperature: -10 to +50 °C

Humidity: 10 to 90 %RH (0 to 50 °C)

Weight: Approx: 5.2kg
