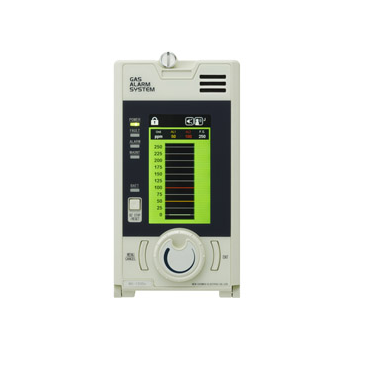

COSMOS NV-120Cv Single-point Gas Alarm Systems (KD-5)

Connectable Detectors: KD-5

Power Supply: AC type: 100 to 240 VAC +10% or DC: 24 VDC (18 to 26.4 VDC)

Power Consumption:

+ Non-backup power type: 2.0 VA (Standard)/3.4 VA (Max)

+ Backup power type: 2.1 VA (Standard)/4.7 VA (Max)

External Output

+ Power output: 24 VDC +10% Max.0.3 A

+ Signal output: 4-20 mA analog or 1-5 V In the event of failure: ≤ 0.6 mA (for 4-20 mA type) and ≤ 0.25 V (for 1-5 V type)

+ Alarm1, Alarm2, Fault

+ Energised/de-energised & latching, non-latching

Operating Temperature:

+ Non-backup power type: -10 to +50 °C;

+ Backup power type: 0 to +40 °C

Operating Humidity: 0 to 90 %RH

Dimensions:

+ Non-backup power type: W113 mm x D77 mm x H219 mm;

+ Backup power type: W113 mm x D115 mm x H234 mm

Weight:

+ Non-backup power type: Approx. 750 g;

+ Backup power type: Approx. 2.2 kg
