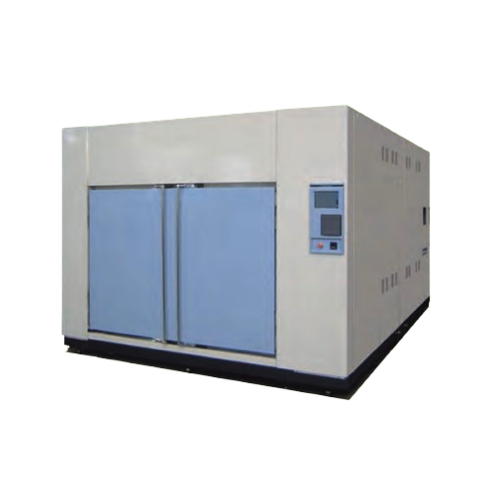

Cosmopia ES-2906L Air Flow Type Thermal Shock Testing Apparatus (150℃/60 min.;− 70℃/90 min; 2,880 L)

Type: Stationary sample type, cool/hot air switchable, two/three zone switchable

Testing temperature range:

Low-temperature testing: −65 to 0℃

High-temperature testing: 60 to 130℃

Temperature fluctuation margin: ±0.5℃

Temperature rise time (high-temp chamber): Room temperature to 150℃: Within 60 min.

Temperature drop time (low-temp chamber): Room temperature to −70℃: Within 90 min.

Temperature cycle performance:

Cycles: 5 cycles (low-temperature start)

Testing chamber temperature/time (Low): −40℃ / 30 min.

Testing chamber temperature/time (High): 120℃ / 30 min.

Temperature measurement position: Upwind side

Sample Type: Iron block

Sample weight / Temperature return time: 100 kg (equivalent to iron block) / Within 10 min.

Cooling method: Water-cooling

Exterior: Cold-rolled steel plate, natural gray (Munsell code: 1.0Y8.5/2.5)

Testing chamber volume: 2880 L

Testing chamber dimensions (W×D×H): 2000 × 1,200 × 1,200 mm

Product dimensions (W×D×H): 3100 × 3,270 × 2,180 mm

Permissible sample weight inside testing chamber: 150 kg (max.) (sample and shelf 30 kg × 5 rows or less)

Refrigerant type: High-temperature side: R404A, Low-temperature side: R23

Operational noise: 70 dB(A)

Dry air: Pressure: 0.4 to 0.7 MPa, Consumption: Approx. 20 L(ANR) per cycle

Coolant: Volume: 8,400 L/h (coolant inlet temperature 32℃), Pressure: 0.1 to 0.5 MPa

Power supply: Three-phase 200V 50/60Hz, Three-phase 220V 60Hz, Three-phase 380V 50Hz

Maximum load current / Power supply capacity: 365 A / 130 kVA

Product weight: 3,950 kg
