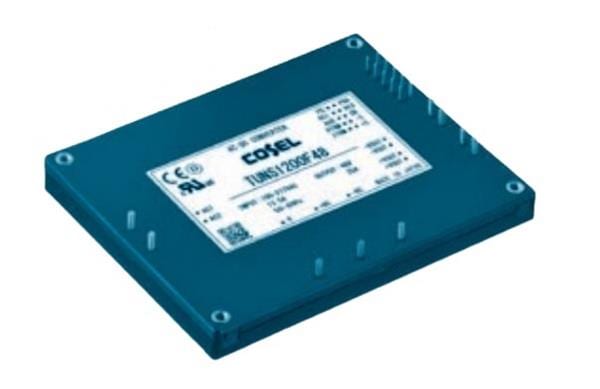

Cosel TUNS1200F48-Y1 AC-DC Power Modules 1200W 48V 25A Power Module with 20% output voltage adjustment range

Width: 86.8 mm

Height: 12.7 mm

Length: 117.3 mm

Industry: Industrial

Dimensions: 117.3 mm X 86.8mm X 12.7 mm

Unit Weight: 280 g

Output Power: 1.2 kW

Input Voltage: 85 VAC to 305 VAC

Mounting Style: PCB

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC, 500 VDC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 25 A

Output Voltage-Channel 1: 48 V

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
