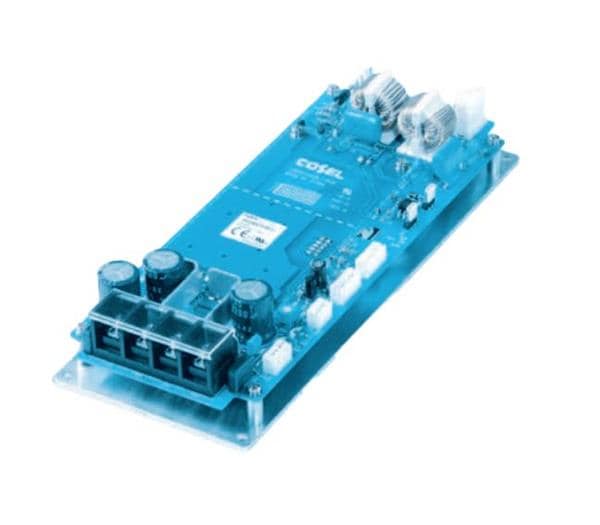

Cosel SNDBS700B48 Isolated 200-400Vin 48Vout 14.5A 696W

Width: 88.9 mm

Height: 45.7 mm

Length: 221 mm

Efficiency: 91 %

Unit Weight: 570 g

Output Power: 696 W

Input Voltage: 200 V to 400 V

Cooling Method: Conduction

Mounting Style: Chassis

Mechanical Style: Isolated

Isolation Voltage: 3 kV

Number of Outputs: 1 Output

Input Voltage - Max: 400 V

Input Voltage - Min: 200 V

Input Voltage, Nominal: 300 V

Output Current-Channel 1: 14.5 A

Output Voltage-Channel 1: 48 V

Maximum Operating Temperature: + 95 C

Minimum Operating Temperature: - 20 C
