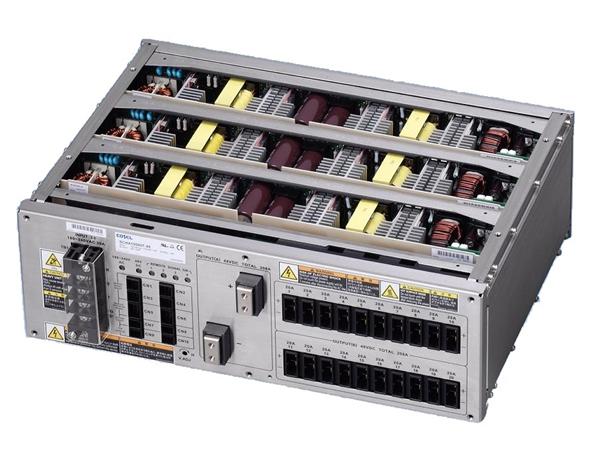

Cosel SCHA10000T-48-Y1 Switching Power Supplies 10KW 160-264V 35A AC-DC Power Supply

Width: 1.508 ft

Height: 5.9 in

Length: 1.05 ft

Industry: Industrial

Efficiency: 90 %

Unit Weight: 23 kg

Output Power: 9.984 kW

Input Voltage: 160 VAC to 264 VAC

Cooling Method: Air-Cooled

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Mechanical Style: Open / Enclosed Frame

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Power - Forced Air: 9.984 kW

Input Voltage - Max: 264 VAC

Input Voltage - Min: 160 VAC

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 208 A

Output Voltage-Channel 1: 48 VDC

Operating Temperature Range: 0 C to + 50 C

Maximum Operating Temperature: + 50 C

Minimum Operating Temperature: 0 C
