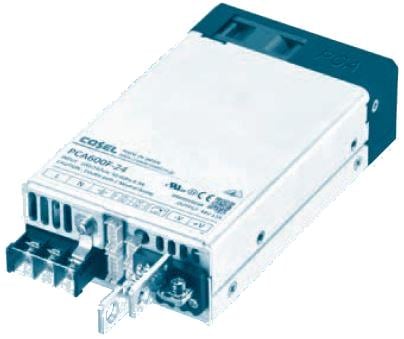

Cosel PCA600F-24 Switching Supplies 648W 24V 27A 2xMOPP

Width: 89 mm (3.504 in)

Height: 41 mm (1.614 in)

Length: 152 mm (5.984 in)

Industry: Medical

Approvals: ANSI/AAMI ES60601-1, cUL (CSA60950-1), EN60601-1 3rd, EN60950-1, UL60950-1

Compliance: ANSI/AAMI ES60601-1, C-UL (CSA60950-1), EN60601-1 3rd, EN60950-1, UL60950-1

Efficiency: 91 %

Unit Weight: 840 g

Output Power: 648 W

Input Voltage: 85 VAC to 264 VAC, 88 VDC to 370 VDC

Mounting Style: Chassis

Input Frequency: 45 Hz to 66 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 27 A

Output Voltage-Channel 1: 24 VDC

Operating Temperature Range: - 20 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
