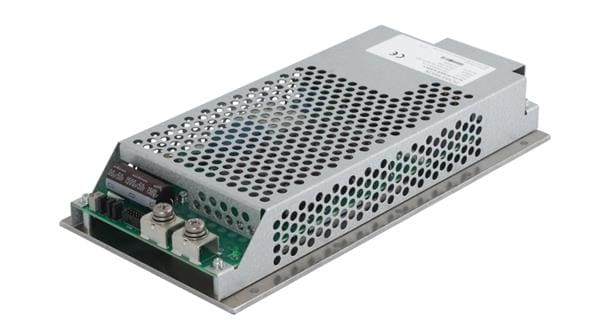

Cosel OFI700A12-NO AC/DC Baseplate Power Supply 700W 85-264Vac 12V 58.4A W/Baseplate, W/Cover, W/Oring

Width: 126 mm (4.961 in)

Height: 40 mm (1.575 in)

Length: 250 mm (9.843 in)

Industry: Industrial

IP Rating: IPX0

Unit Weight: 1.100 kg

Output Power: 700 W

Input Voltage: 85 VAC to 264 VAC, 120 VDC to 350 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Not Regulated

Isolation Voltage: 3 kVDC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 58.4 A

Output Voltage-Channel 1: 12 VDC

Maximum Operating Temperature: + 95 C

Minimum Operating Temperature: - 40 C
