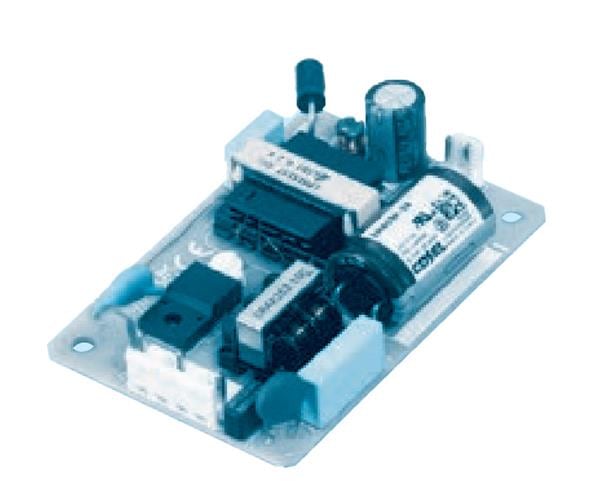

Cosel LHA15F-24 AC to DC Power Supply AC/DC Power Supply,Open frame 15W, 24V, 0.7A

Width: 50 mm (1.969 in)

Height: 21.5 mm (0.846 in)

Length: 73.5 mm (2.894 in)

Industry: Industrial

Efficiency: 84.5 %

Unit Weight: 60 g

Output Power: 16.8 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 45 Hz to 440 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kV

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 700 mA

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 10 C
